Technaxx 325W Solar Panel (TX-213)

325W Solar Panel TX-213 - Compatibility: TX-203, TX-204

Availability: usually in 14 days

Brand:

Technaxx

Code/PN:

TX0636 / 5022

EAN:

4260358125541

Energy class:

Not specified

Warranty:

24 months

Specification Photos GPSR

325W Solar Panel TX-213

Modern solar cells with high efficiency 22.70%
54 (6x9) high efficiency monocrystalline solar cells
Anti-reflective and dirt-repellent surface
Excellent performance in low irradiance environments
High mechanical strength due to sturdy aluminum frame
Bypass diode for improved current efficiency with parallel and/or series connection

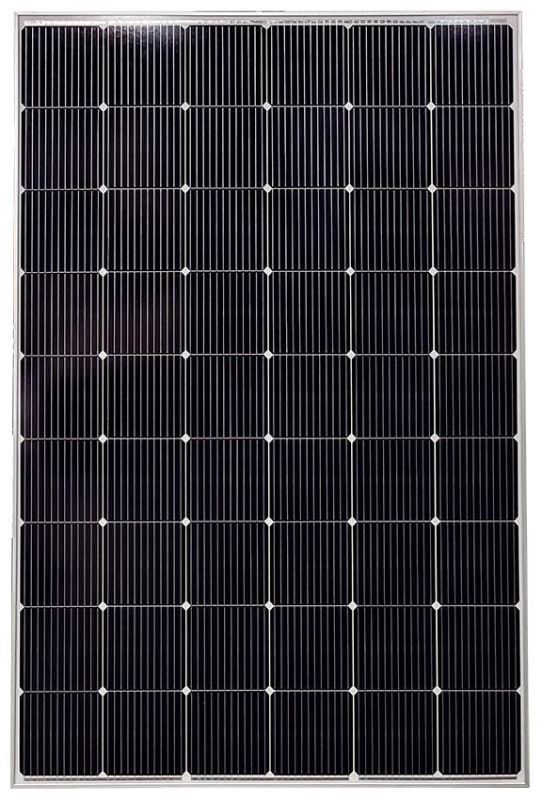

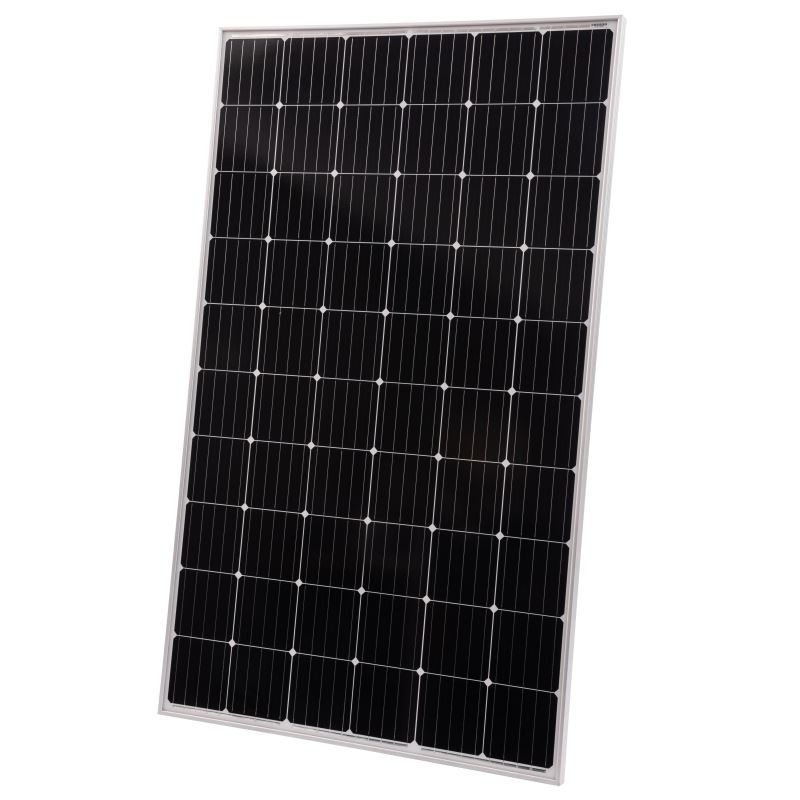

Monocrystalline Solar Module
Compatibility: TX-203, TX-204

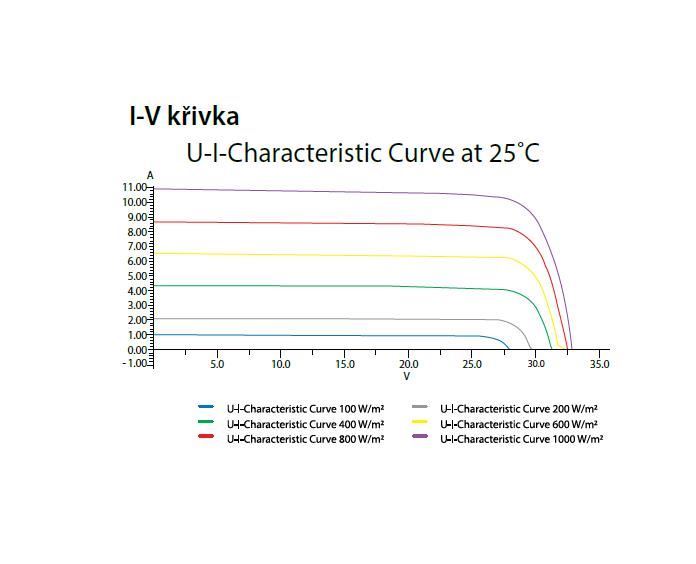

Electrical Characteristics
Model No.: GP-325M-54
Maximum Power (Pmax): 325W
Max-power Voltage (Vmp): 31.6V
Max-power Current (Imp): 10.29A
Open-circuit Voltage (Voc): 36.8V
Short-circuit Current (Isc): 10.92A
Module Efficiency: 22.70%
Operating Temperature: -40°C~+85°C
Maximum System Voltage: 1000Vdc
Maximum Series Fuse Rating: 15A
Power Tolerance: ±3%
*STC condition: 1000 W/m2,1.5AM and 25°C cell temperature

Temperature Characteristics
NMOT: 46°C±2°C
Temperature Co-efficient of Pmax: -0.42%/°C
Temperature Co-efficient of Voc: -0.32%/°C
Temperature Co-efficient of Isc: 0.03%/°C

Mechanical Characteristics
Mono Power: 325W
Cell Type Mono: 165x165mm
Cell Arrangement: 54(6x9)

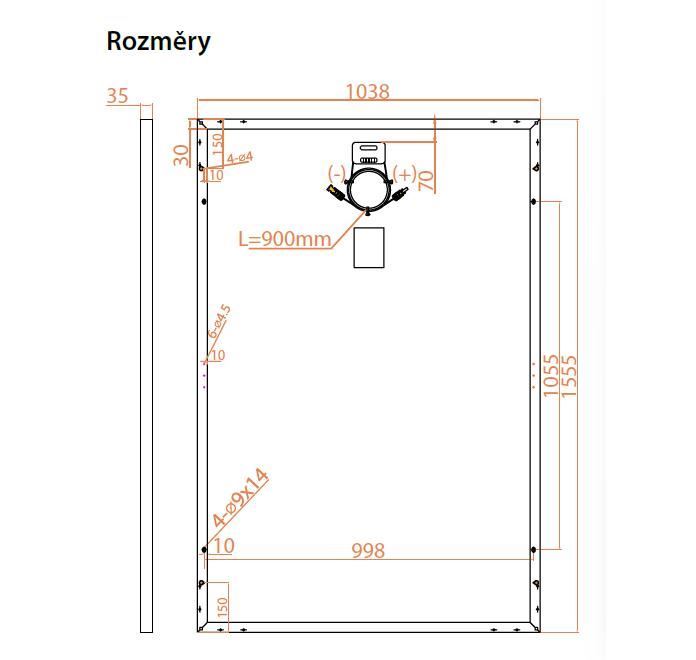

Dimensions: 1555x1038x35mm
Weight: 16.8kg
Front Cover: High-transmission low-iron tempered glass, EVA, TPE
Frame Material: Anodized aluminium alloy

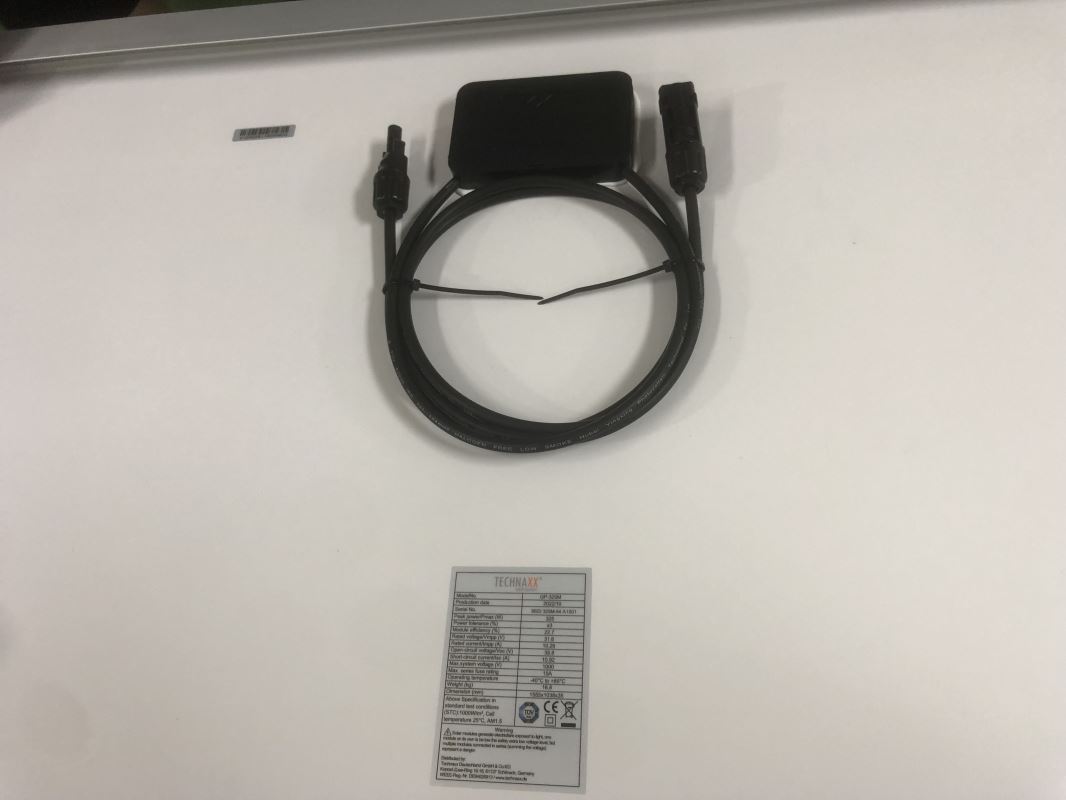

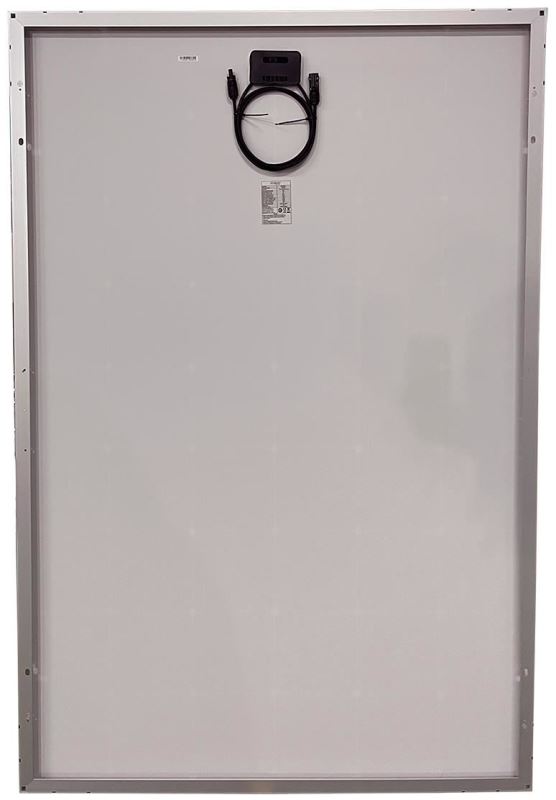

Junction Box: IP68 rated
Output Cables: 4mm2, Length 900mm+MC4

Package Contents:
1x 325W Solar Panel TX-213, 1x datasheet

Note: This publication summarizes product warranty and specifications which are subject to change without notice. Product photos are for reference only, on behalf of actual product.Warranty
25-year limited warranty of 80% power output
10-year mm warranty of 90% power output
10-year limited warranty of materials and workmanship
