PORT CONNECT Universal USB-C Travel Docking Station, 1× 4K / 3× Full HD

The PORT Universal USB-C Docking Station is designed for users who need a compact and portable solution to expand their notebook's connectivity.
It allows you to connect one external 4K monitor at 60 Hz or up to three external Full HD monitors, while expanding your notebook with network connectivity, USB ports and other interfaces via a single USB-C cable.

The docking station is compatible with Windows®, macOS® and ChromeOS™ and supports a wide range of USB-C devices.
The notebook is powered via USB-C with Power Delivery™ support up to 100 W, which allows you to simultaneously charge the connected device without the need for an additional power adapter.

The device allows you to connect up to 9 peripherals simultaneously and is equipped with an integrated 55 cm USB-C cable, which is optimized for mobile working environments.
The LED power indicator provides an instant check on the device status, and the integrated security slot helps protect the docking station from theft.

Support for PXE Boot and Wake-on-LAN enables remote management and easy integration into corporate IT infrastructures.

A 100W power adapter is included to ensure the docking station is fully functional.

• Supports 1 external monitor at 4K @ 60 Hz
• Supports up to 3 external monitors in Full HD
• Power Delivery™ up to 100 W to power your laptop
• Connect up to 9 peripherals with a single cable
• Universal compatibility: Windows®, macOS®, ChromeOS™
• Integrated USB-C cable with a length of 55 cm
• LED power indicator

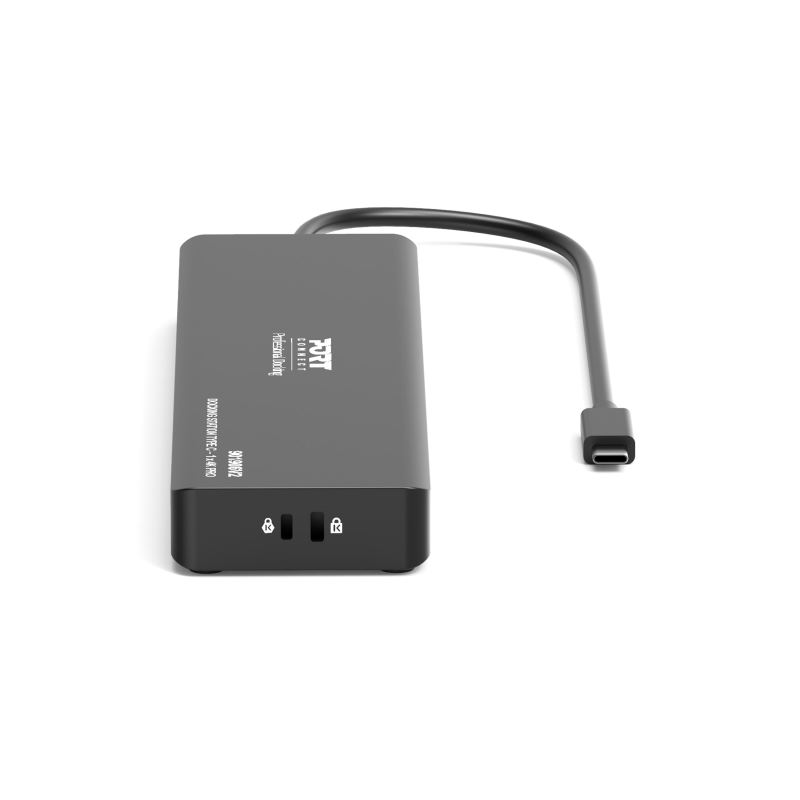

• Integrated security slot
• Supports PXE Boot & Wake-on-LAN
• 100 W power adapter included

TECHNICAL SPECIFICATIONS

Video output:
– up to 1× 4K @ 60 Hz, or
– up to 3× Full HD

Video connection options:
– HDMI + HDMI
– DisplayPort + HDMI

Input: 20 V / 5 A
Output: 20 V / 4.25 A
USB-C cable length: 55 cm
Plug & Play
Material: ABS + PCBA

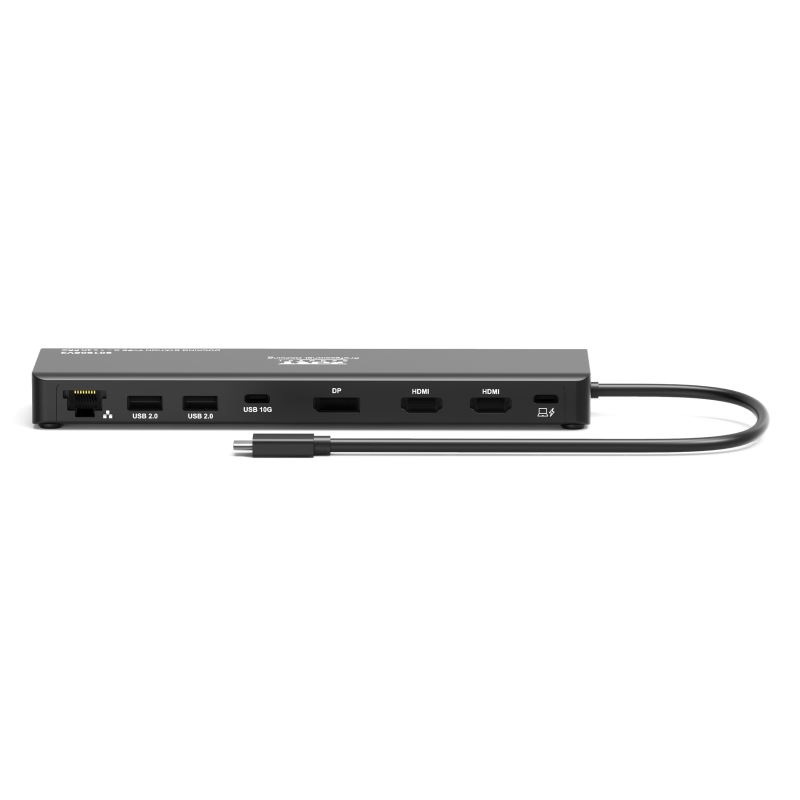

Connectivity

• 1× DisplayPort
• 2× HDMI
• 1× RJ45 Ethernet (10/100/1000 Mbps)
• 1× USB-C 3.1 Gen 2 Power Delivery (up to 100 W) - connect to a laptop
• 2× USB-A 2.0
• 2× USB-C 3.1 Gen 2 (10 Gbps)

Compatibility

• Devices with USB-C interface
• Windows®, macOS® and ChromeOS™ operating systems

DIMENSIONS AND WEIGHT

Product dimensions: 5.7 x 20.7 x 2.1 cm
Product weight: 200 g
Package dimensions: 9.8 x 22.6 x 2.7 cm
Package weight: 550 g

PACKAGE CONTENTS

• USB-C Travel Docking Station 1×4K ++
• 100 W Power Adapter
• User Manual

This product does not generate any data.
