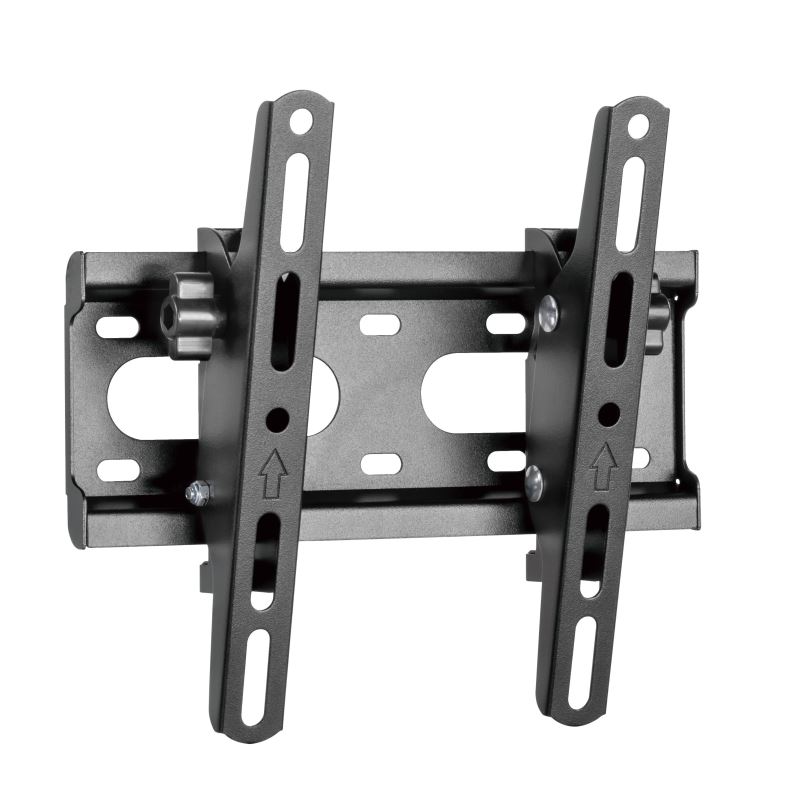

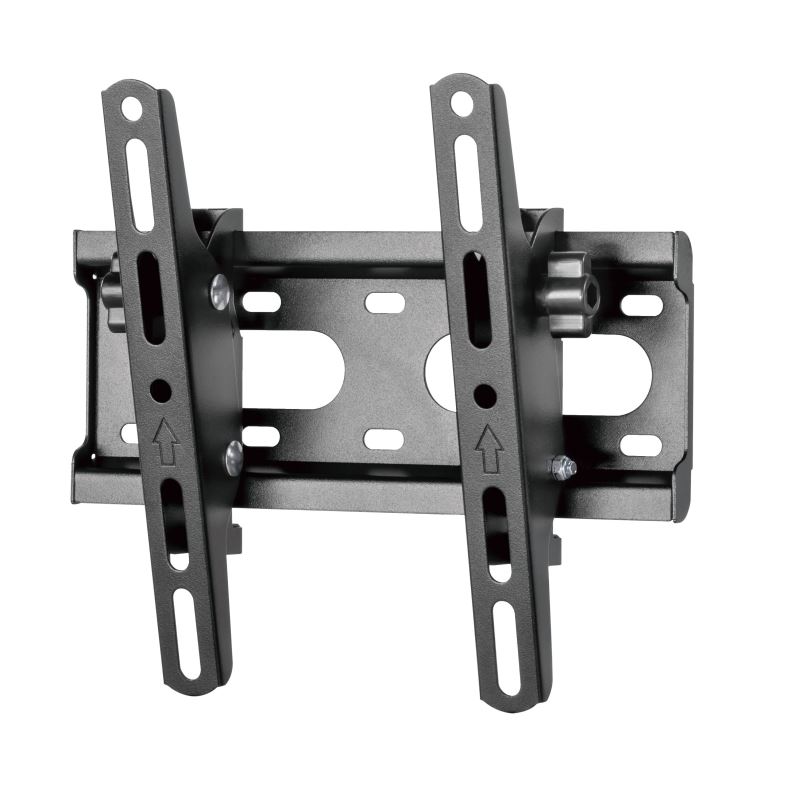

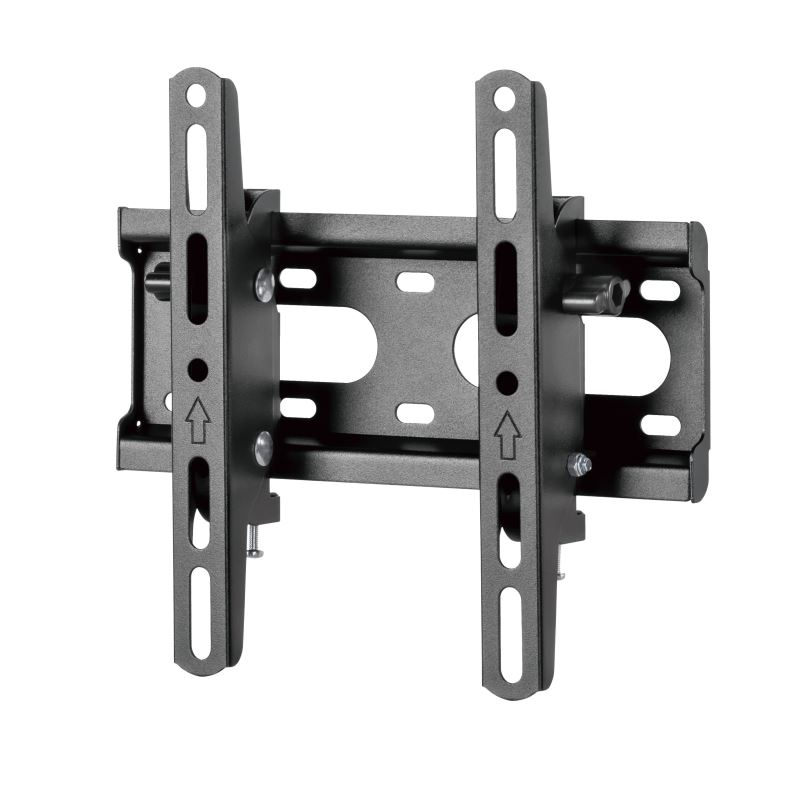

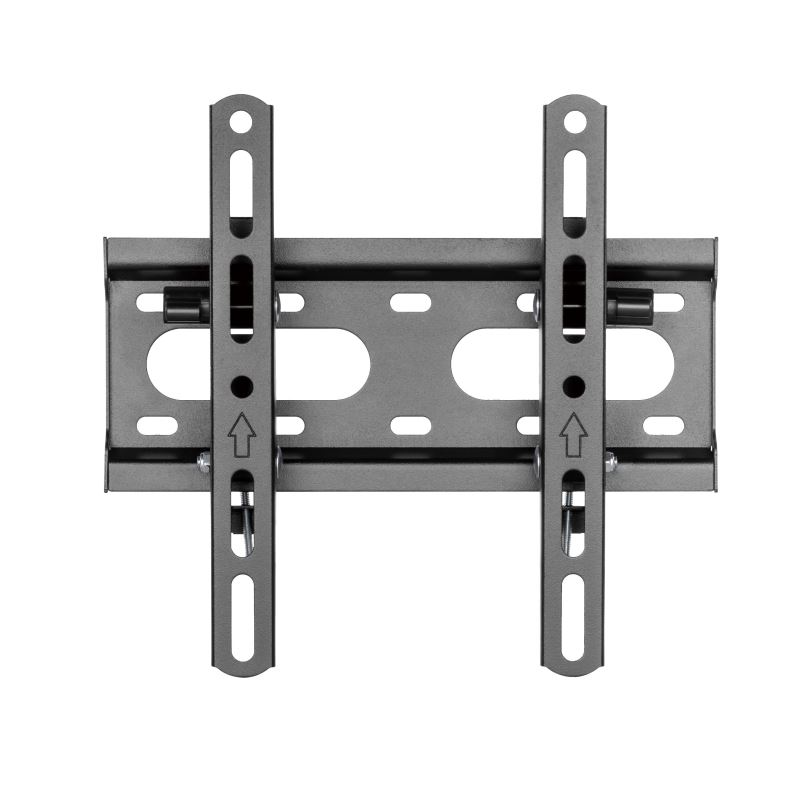

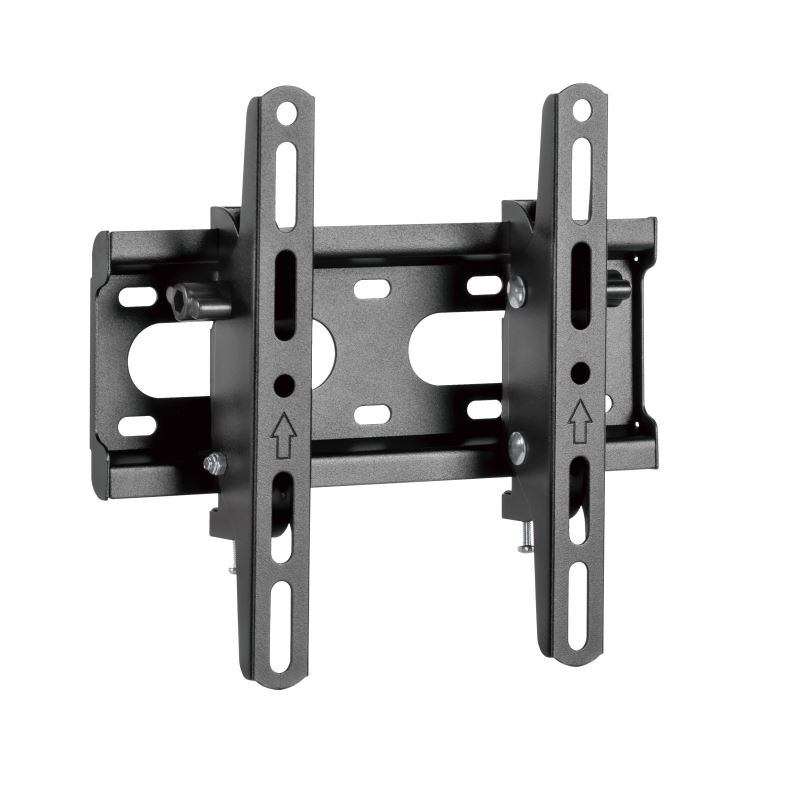

SBOX Wall Mount for TV, Tilting, for 23"–43", Load Capacity 45 kg, Black (PLB-2522T-2)

Tilting bracket ideal for economical and safe placement of a smaller TV on the wall.


The SBOX PLB-2522T-2 is a compact and practical bracket designed for smaller to medium-sized TVs.
Thanks to the tilting mechanism, it allows easy adjustment of the viewing angle as needed.
With a minimum distance from the wall of 53 mm, it creates an elegant look without disturbing the appearance.
Its solid construction ensures secure mounting of screens up to 45 kg.
The bracket supports a wide range of VESA standards from 75 × 75 to 200 × 200 mm.
It is also compatible with curved TVs, thus expanding the possibilities of use.
Installation is quick and user-friendly thanks to the removable VESA plate.
The PLB-2522T-2 is an ideal solution for homes and offices where you need to save space without compromising on stability.

• Load capacity up to 45 kg, suitable for diagonals 23"–43" (58–109 cm)
• Compatible with VESA 75×75 to 200×200 mm
• Sturdy construction with ±12° tilt for better viewing angle
• Minimum distance from the wall: 53 mm
• Also suitable for curved screens and easy installation

CONSTRUCTION AND FINISH
The combination of steel and plastic elements ensures strength and at the same time an elegant appearance.
The surface is treated with black powder coating, which protects the holder from scratches and ensures a long service life.

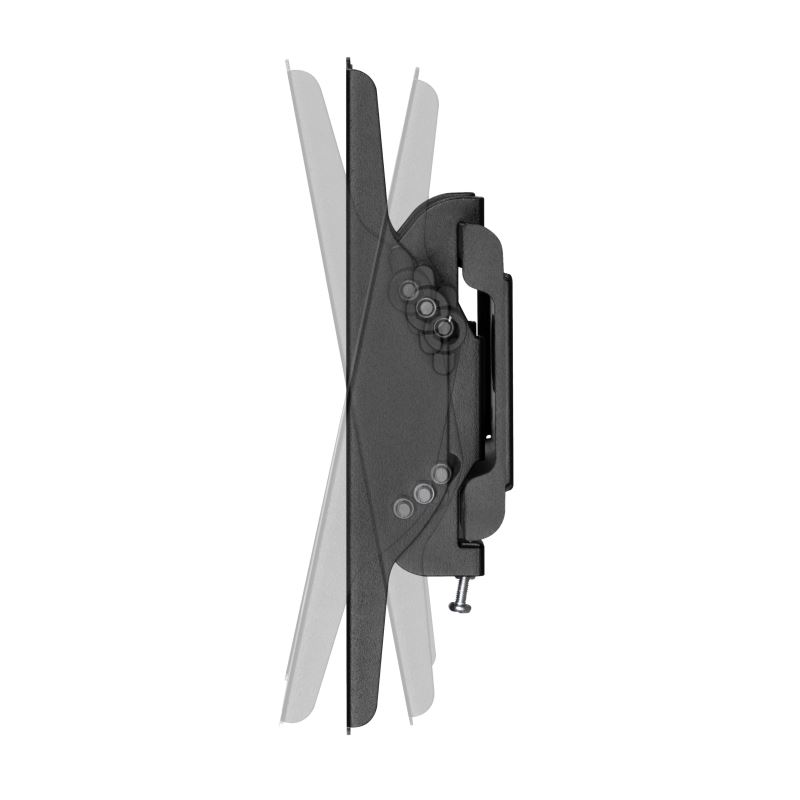

TILT MECHANISM AND STABILITY
Thanks to the tilt range of ±12°, you can easily adjust the screen to the ideal viewing angle.
The fixed depth of the holder of 53 mm ensures stability even when moving or manipulating the cable.

COMPATIBILITY AND INSTALLATION
Supports a wide range of VESA sizes from 75×75 to 200×200 mm.
It is suitable for both flat and curved screens up to 43".
Removable VESA plate simplifies installation and handling during assembly.


TECHNICAL SPECIFICATIONS:

Mount type: Tilt
Supported VESA: 75×75 to 200×200 mm
Maximum load capacity: 45 kg
Recommended screen size: 23"–43" (58–109 cm)
Tilt: ±12°
Swivel: No
Distance from wall: 53 mm
For curved screens: Yes
Flat alignment: Yes
Material: Steel and plastic
Color: Black
Finish: Powder coating
Mounting: Wall
Cable management: No
Removable VESA plate: Yes


DIMENSIONS AND WEIGHT:

Mount dimensions: 240 × 223 × 53 mm
Package dimensions: 260 × 52 × 108 mm
Product weight: 875 g
Total weight: 965 g


Warning: Before installation, check the VESA standard of your TV and the screw types recommended by the manufacturer.
