Thrustmaster SOL-R 5 BASE, Flight Control Base (2960948)

Expand your arsenal – the Thrustmaster SOL-R 5 BASE offers 23 buttons, 4 axes, RGB backlighting and H.E.A.R.T. technology for ultimate control precision.

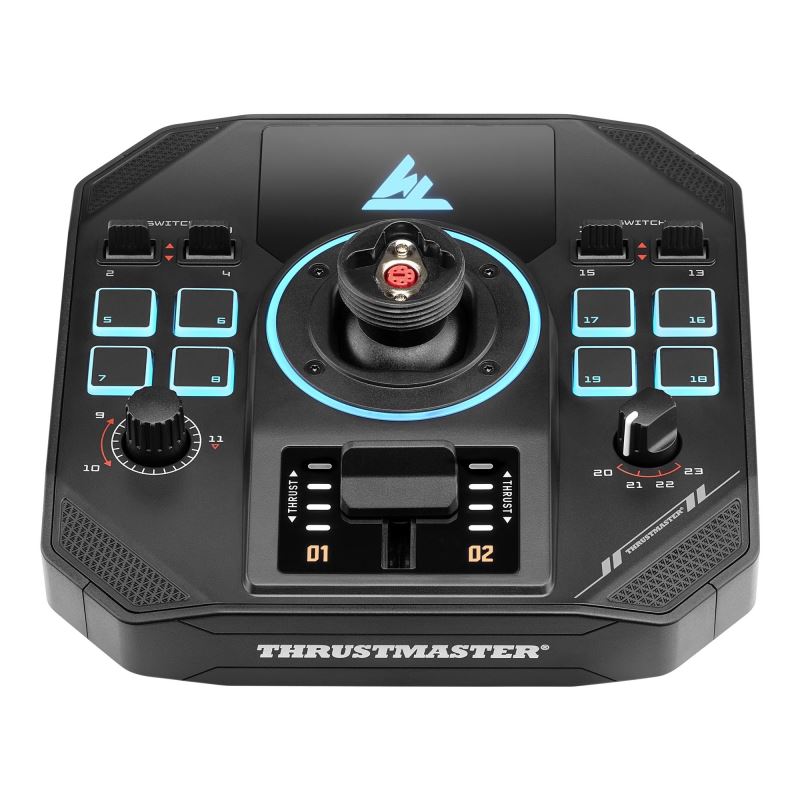

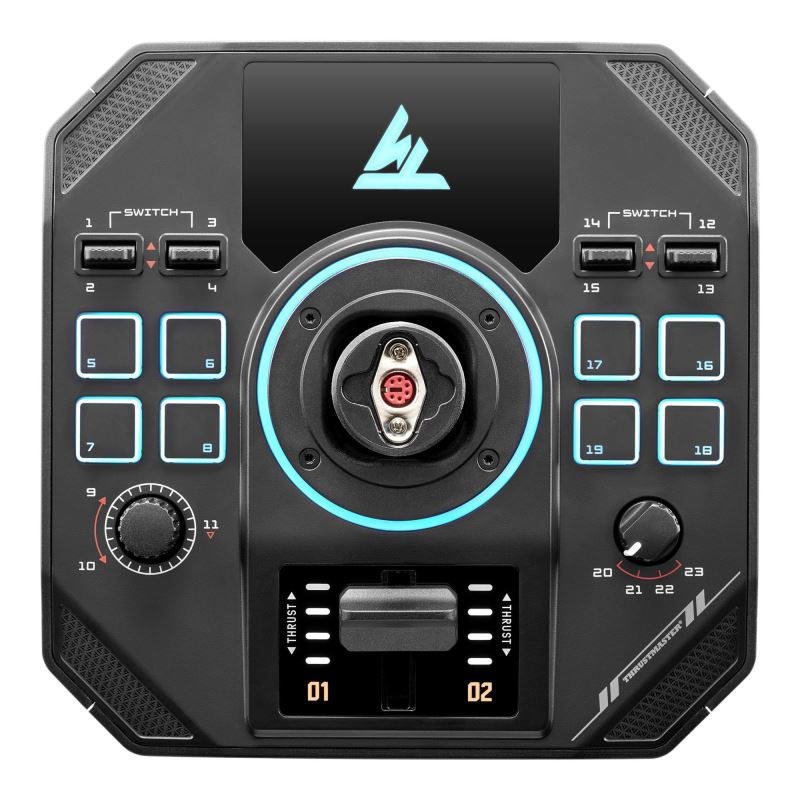

Control every flight with surgical precision – the Thrustmaster SOL-R 5 BASE is a next-generation premium modular base that combines 23 buttons, 4 axes and H.E.A.R.T. technology with fully programmable RGB backlighting.

This versatile base has been designed for pilots who want to take full advantage of their existing and future Thrustmaster grips.
The design offers professional-level precision thanks to 3D magnetic sensors (Hall effect) on the X, Y and Z axes, ensuring 16-bit resolution without drift or mechanical wear.

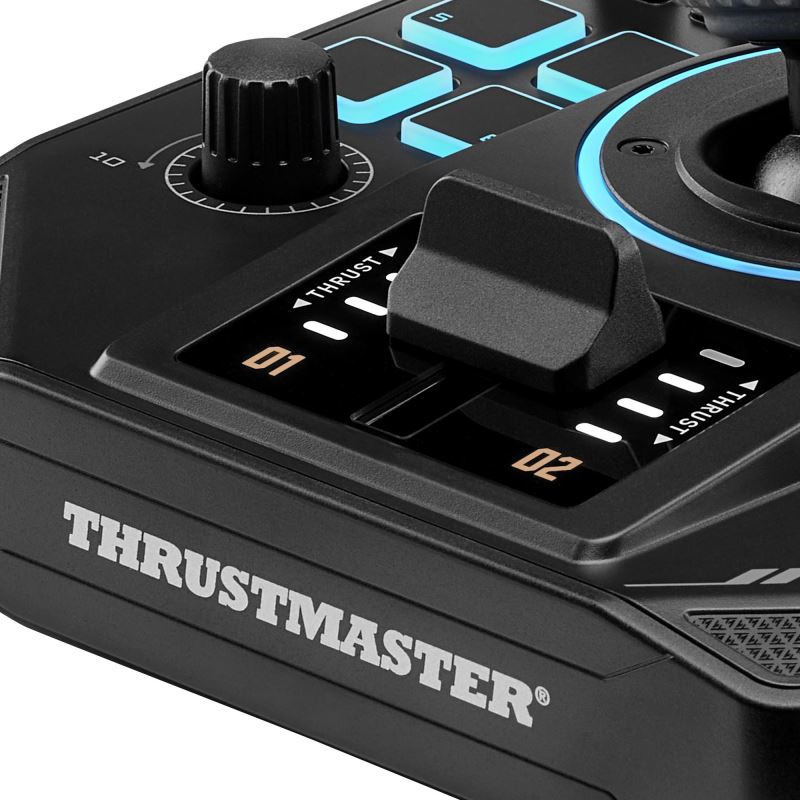

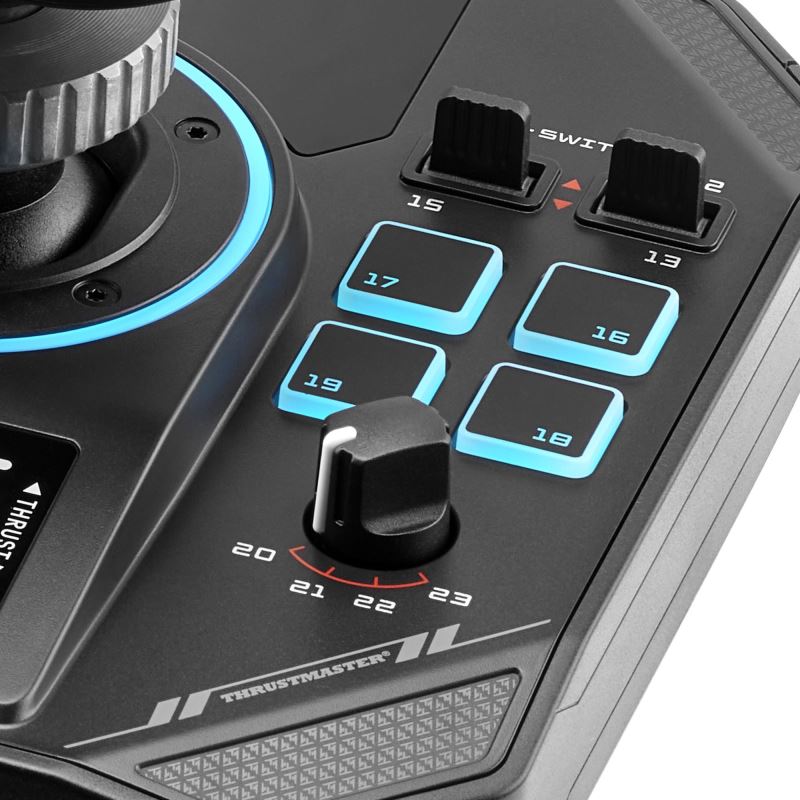

The base features 23 action buttons and 4 axes of movement, including a central throttle with a smooth 22 mm stroke and a working range of ±18°.

More than 10 RGB backlight zones, controllable via T.A.R.G.E.T. software, allow for a visual overview of the device's status and personal customization.

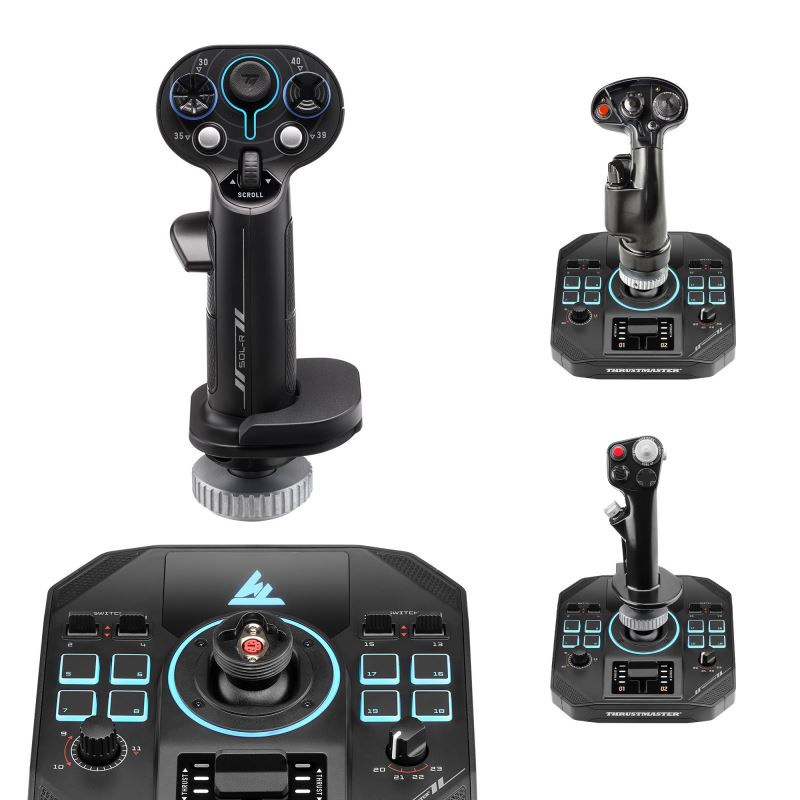

Compatibility with Sol-R 3 AVA Add-On Grip, F-16C Viper, F/A-18C Hornet handles as well as with AVA Offset Adapter, AVA extensions and TM Flying Clamp accessories makes it the ideal base for flight and space simulators.
Thanks to Plug & Play integration, the base is automatically recognized in DCS and Microsoft Flight Simulator games without the need for complex setup.

The design with pre-drilled mounting holes corresponding to the T16000M and TWCS models allows for easy mounting on a table or cockpit holder.

• Modular base compatible with all Thrustmaster handles*
• 23 buttons, 4 axes and a central stick with indicator light
• H.E.A.R.T. magnetic sensors with 16-bit accuracy
• RGB backlight with more than 10 programmable zones
• Full integration with T.A.R.G.E.T. software
• Compatible with DCS and Microsoft Flight Simulator
• Mountable on desktop and cockpit mounts
• Premium design with ergonomic design for right and left-handed users

H.E.A.R.T. TECHNOLOGY
Patented HallEffect AccuRate Technology (U.S. patent: US08471815) uses magnetic sensors for extremely smooth and precise control without contact.
Provides 16-bit resolution on the X, Y and Z axes, zero dead zones and a long lifespan.

RGB LIGHTING
The base contains more than 10 RGB zones that can be controlled using the T.A.R.G.E.T. software.
The lighting allows you to customize the appearance, color-code active modes and increase control clarity even during night missions.



COMPATIBILITY

• PC (Windows® 10 / 11)
• Handles: Sol-R 3 AVA Add-On Grip, F-16C Viper HOTAS Add-On Grip, F/A-18C Hornet HOTAS Add-On Grip
• Accessories: AVA Offset Adapter, AVA Extension, TM Flying Clamp
• Simulators: Digital Combat Simulator (DCS), Microsoft Flight Simulator (automatic recognition)
• Software: Thrustmaster T.A.R.G.E.T. for mapping and saving profiles

Note. Compatible grips and accessories sold separately

TECHNICAL SPECIFICATIONS

Number of buttons: 23
Number of axes: 4 (including 1 virtual axis)
Sensors: H.E.A.R.T. magnetic sensors on X, Y, Z axes
Accuracy: 16 bits
Throttle axis travel: 22 mm (0.9")
Working angle range: ±18°
Backlighting: more than 10 RGB zones
Interface: USB-C (detachable cable)

DIMENSIONS AND WEIGHT

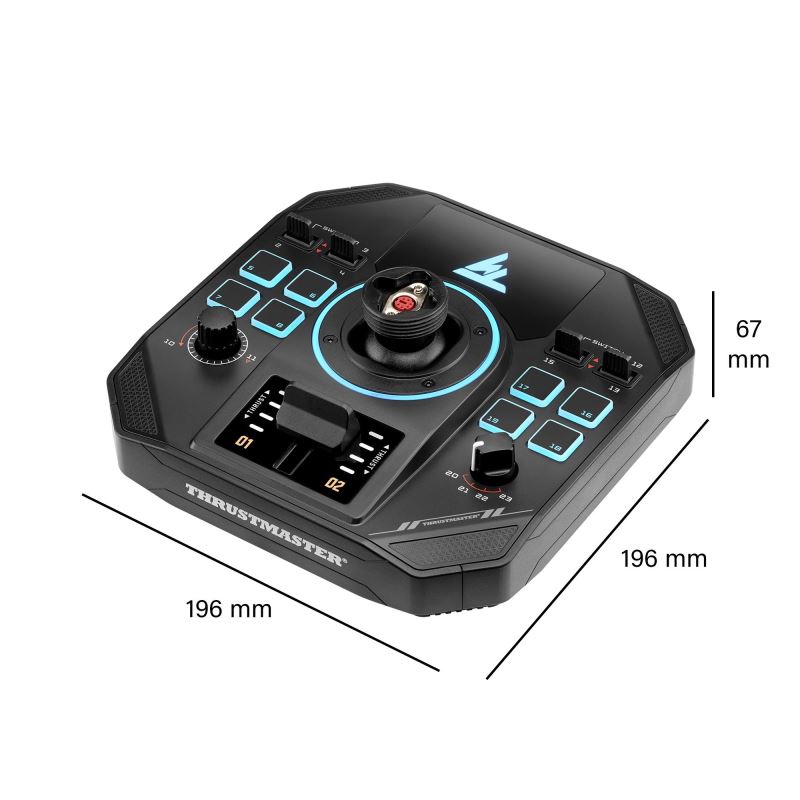

Product dimensions: 196 × 196 × 67 mm
Product weight: 960 g
Package dimensions: 224 × 88 × 211 mm
Weight with packaging: 1,252 g

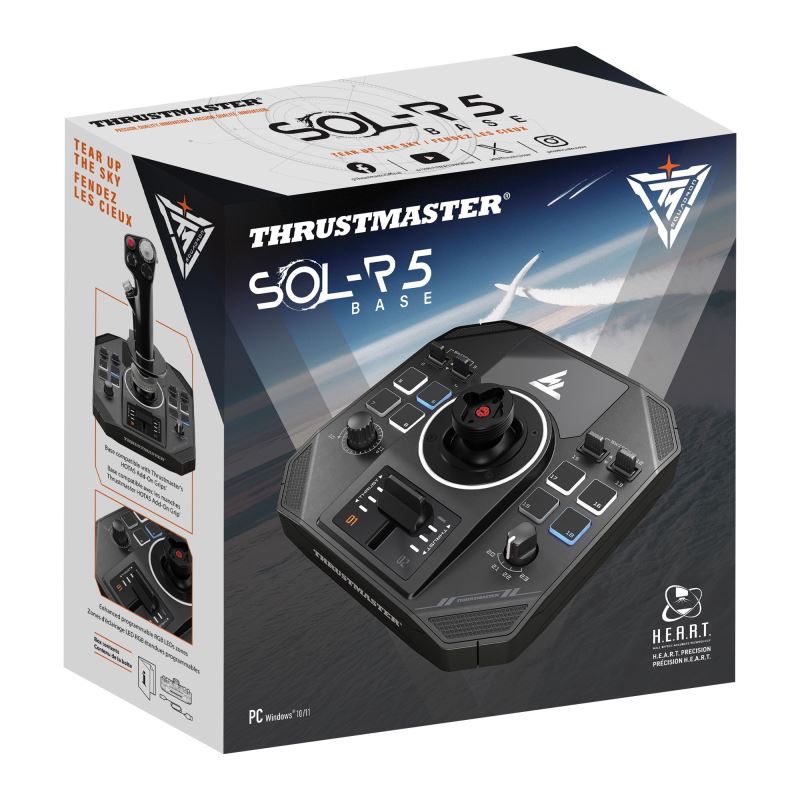

PACKAGE CONTENTS

• 1× Thrustmaster SOL-R 5 base
• 1× detachable USB-C cable
• Instruction manual and warranty documentation

This product does not generate any data.
